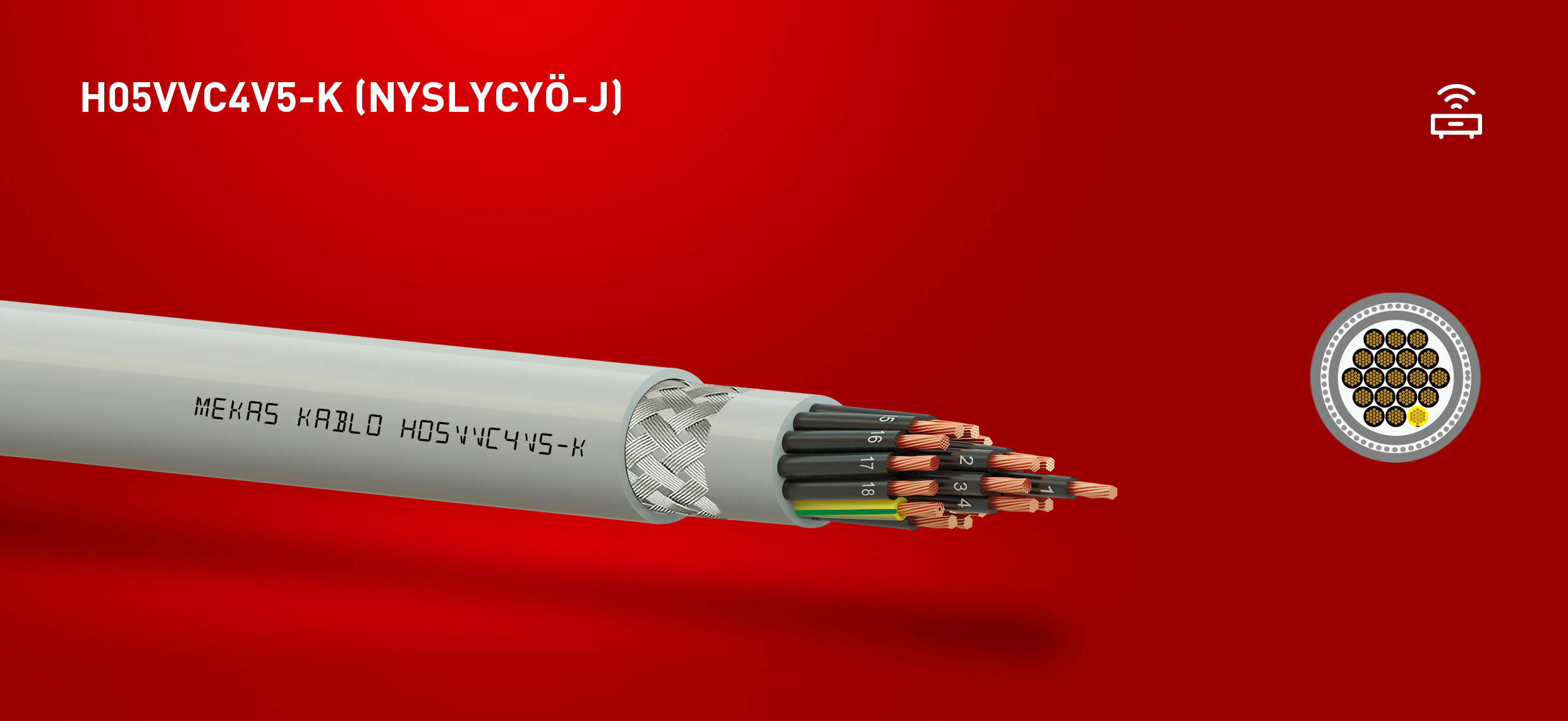

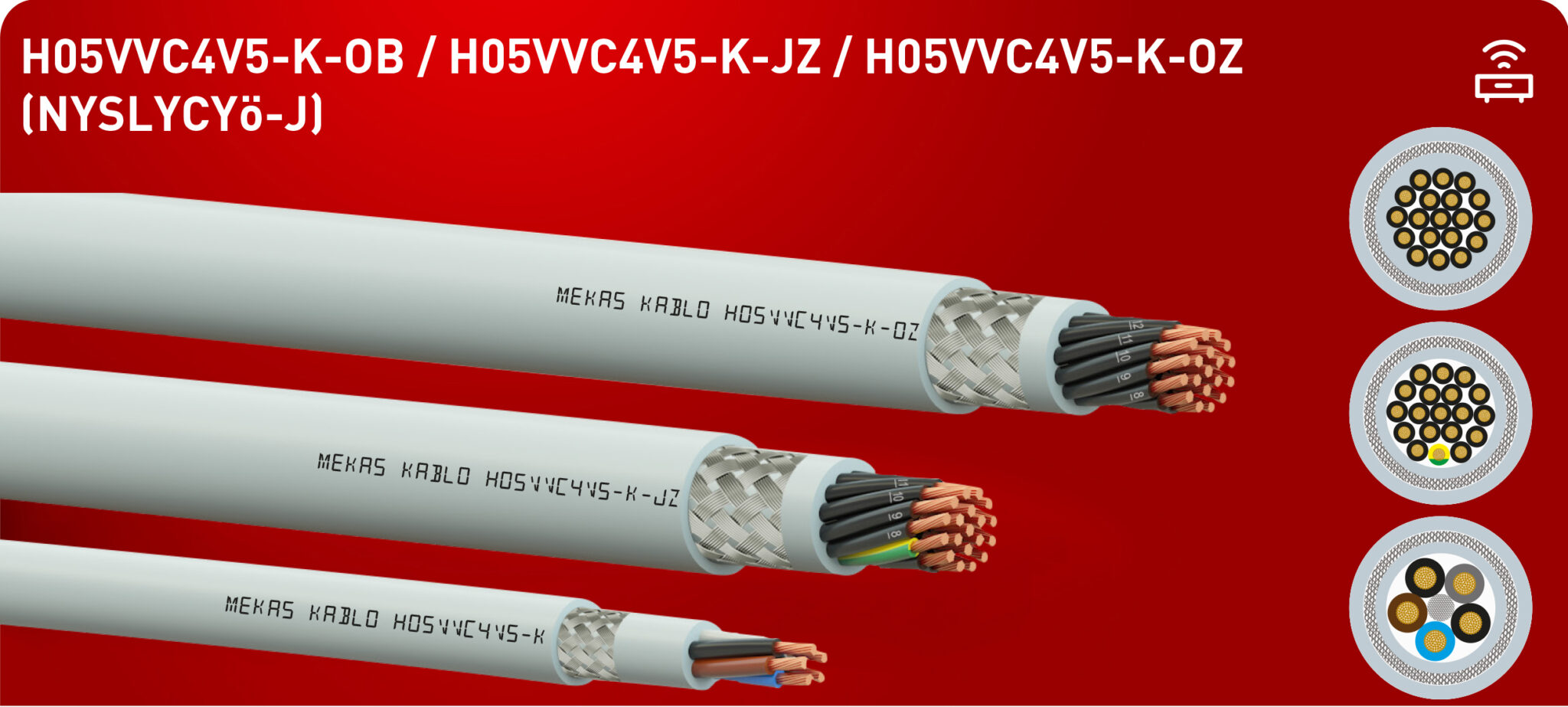

H05VVC4V5 cables
CABLE CONSTRUCTION
ConductorIEC 60228 DIN EN 60228 EN 60228 Stranded Copper Wire Class 5
InsulationEN 50363-3 PVC Compaund
Insulation ColoursDIN VDE 0293; TS EN 50334 Or Black Insulator, White Coded Number
StrandingAppropriate Step Cores Twisted In Layers
Inner SheathEN 50363-4-1 PVC Compaund
ScreenTinned Copper Screen
Outer SheathEN 50363-4-1 TM5 oil resistant PVC compound
Color SheathRAL 7001 Grey
Packing500 – 1000 mt
ELECTRICAL PARAMETERS
Conductor Resistance0,5mm² 39Ω/km -0,75mm² 26Ω/km – 1,0mm² 19,5Ω/km – 1,5mm² 13,3Ω/km – 2,5mm² 7,98Ω/km
Insulation Resistance20MΩkm
Current Carrying Capacity0,5mm² 6,0 A – 0,75mm² 13A – 1,0mm² 16A – 1,5mm² 20A – 2,5mm² 25A
Operating Voltage300V / 500V
Test Voltage2000V
Bending Radius10x Cable Ø
Temperature Range– 5ºC+70ºC Moving ~ 30ºC+70ºC Constant
Flame Retardant TestIEC 60332-1-2 DIN EN 60332-1-2 EN 60332-1-2
Chemical ResistanceIEC 60811-404
