APPLICATINOS

It is a flexible halogen-free insulated and sheathed control cable with number-coded cores and braided, tinned copper screen. Used in dry or wet interior areas not exposed to mechanical strain. Preferred for mobile installations and confined spaces thanks to its flexible and thin design. Used for measurement and control functions in electronic control systems, production and assembly lines and engineering projects. Cables are composed of halogen-free materials (flame retardant materials that do not emit toxic gas or black dense smoke that lowers visibility). They are primarily used in highly populated areas that should have fire resistance.

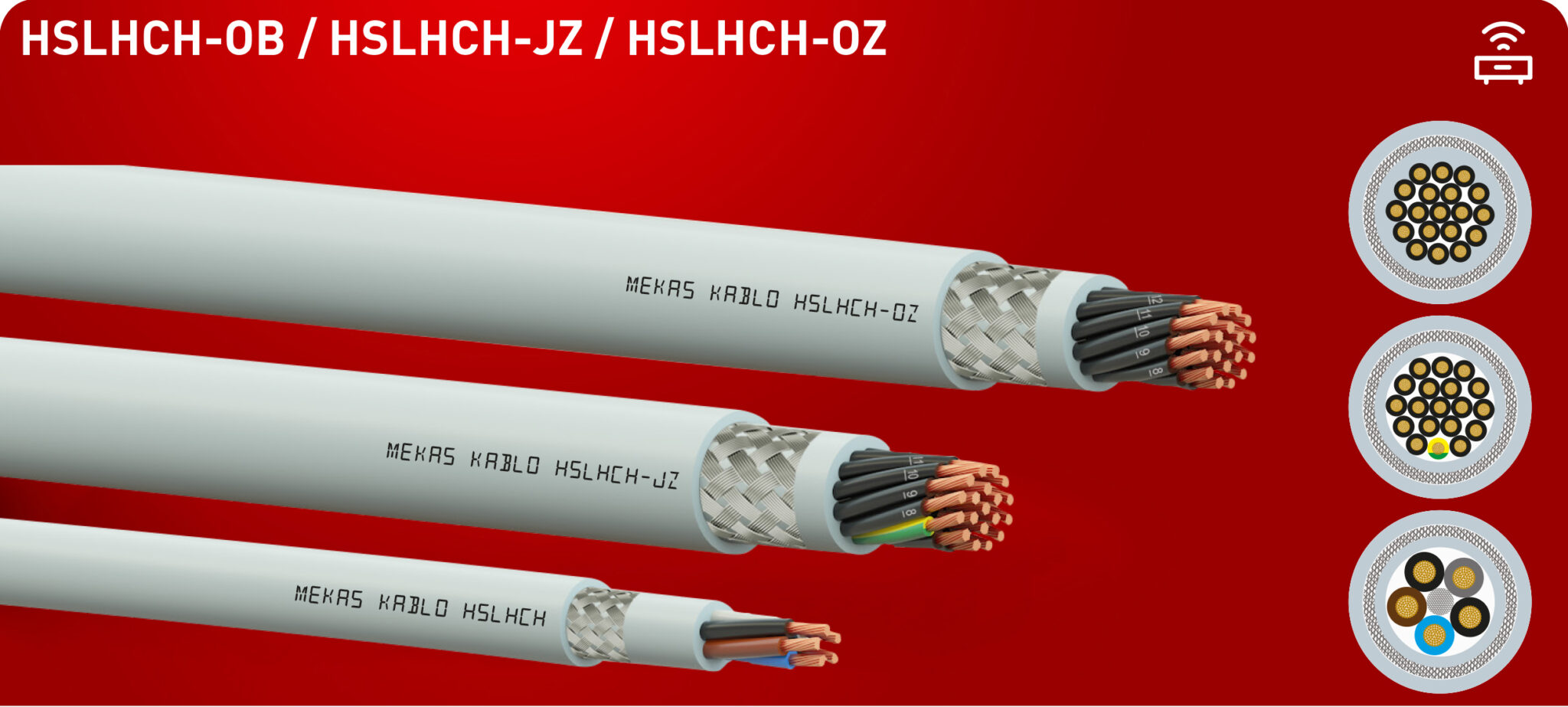

HSLHCH-OZ: Black core with white number codes
HSLHCHJZ: Ground protection conductor (yellow/green), black core with white number codes

CABLE CONSTRUCTION
ConductorStranded Copper Wire Class 5
InsulationHFFR Compaund
Insulation ColoursDIN 47100 Colors Code
StrandingCores Twisted In Layers
FillerHFFR Compaund
BraidTinned Copper Braid
Outer SheathHFFR Compaund
Product TypesHSLHCH
Packing500 – 1000 mt
ELECTRICAL PARAMETERS
Working Temperature– 30 ºC + 70 ºC
Bending Radius ( min.)10 x D
Working Voltage300 / 500 V
Insulation Resistance>200 m Ω x km
Conductor Resistance0,22 mm² : 96 Ω / km – 0,50 mm² : 39 Ω / km – 0,75 mm² : 26 Ω / km – 1,00 mm² : 19,50 Ω / km – 1,50 mm² : 13,30 Ω / km 2,50 mm² : 7,98 Ω / km
Test Voltage0,22 mm² : 1200 V – 0,50 mm² : 1200 V – 0,75 mm² : 1200 V 1,00 mm² : 1200 V – 1,50 mm² : 2500 V – 2,50 mm² : 2500 V
