APPLICATIONS

These PVC cables are used in industrial applications for signal transmission. These can be easily used with their flexible construction in narrow applications like electronic control systems of computer or audio systems or communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. These for indoor applications.

CABLE CONSTRUCTION
ConductorStranded Copper Wire Class 5
InsulationPVC Compaund
Insulation ColoursDIN 47100 Colors & Number Code
StrandingPairwise pairs in layers
SeperatorPes Tape
Outer SheathPVC Grey

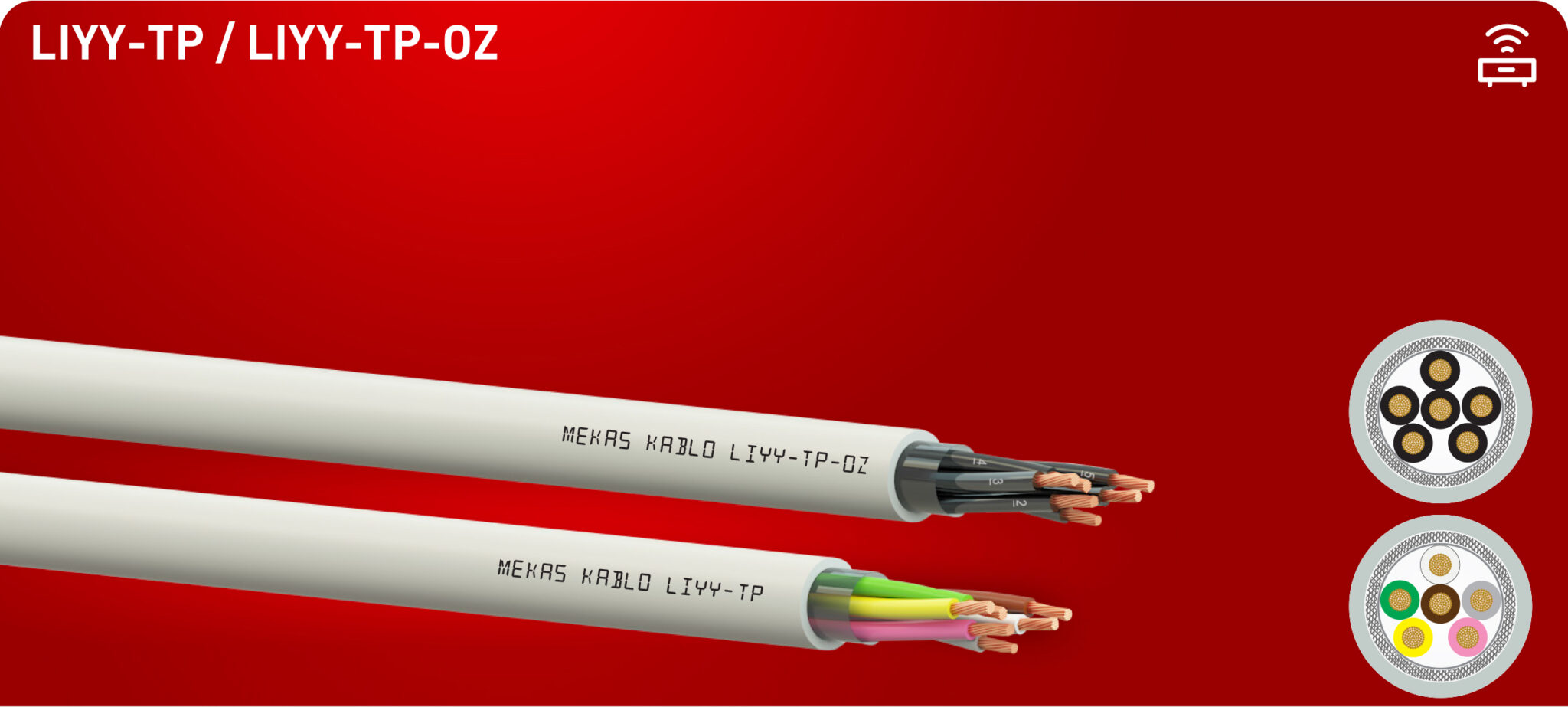

Product TypesLIYY-TP
Packing500 – 1000 mt
ELECTRICAL PARAMETERS
Working Temperature– 30 ºC + 70 ºC
Bending Radius ( min.)10 x D
Working Voltage300 / 500 V
Insulation Resistance>200 m Ω x km
Conductor Resistance0,22 mm² : 96 Ω / km 0,50 mm² : 39 Ω / km 0,75 mm² : 26 Ω / km 1,00 mm² : 19,50 Ω / km 1,50 mm² : 13,30 Ω / km 2,50 mm² : 7,98 Ω / km
Test Voltage0,22 mm² : 1200 V 0,50 mm² : 1200 V 0,75 mm² : 1200 V 1,00 mm² : 1200 V 1,50 mm² : 2500 V 2,50 mm² : 2500 V
