APPLICATIONS
These Cables are specially used under heavy duty , diffucult operation areas and due to PUR it provides long usage life time.
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Stranded Copper Wire Class 5 |
| Insulation | PE Compound |
| Insulation Color | DIN 47100 Color Coded |
| Stranding | Twisting in Pairs |
| Separator Tape | PP Non Woven Tape |
| Screen | Tinned Copper Screen |
| Inner Sheath | PVC Orange |
| Outer Sheath | PUR Orange |

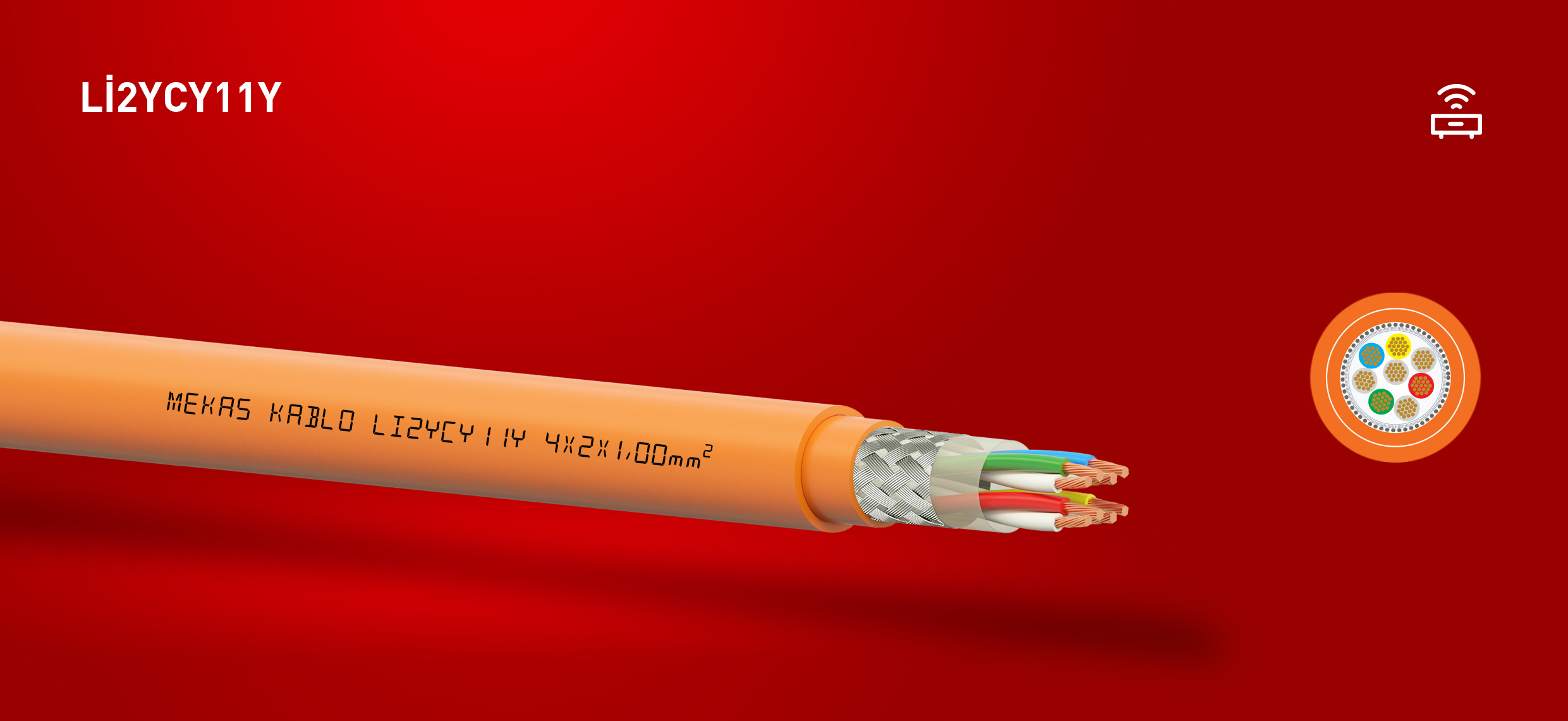

| Product Types | Lİ2YCY11Y |
| Packing | 500 – 1000 meters |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | – 30 ºC + 70 ºC |
| Bending Radius (min.) | 10 x D |
| Working Voltage | 300 / 500 V |
| Insulation Resistance | >200 MΩxkm |
| Conductor Resistance | 0.22 mm²:96 Ω/km – 0.50 mm²:39 Ω/km 0.75 mm²:26 Ω/km – 1.00 mm²:19.50 Ω/km 1.50 mm²:13.30 Ω/km – 2.50 mm²:7.98 Ω/km |
| Test Voltage | 0.22 mm² : 1200 V – 0.50 mm² : 1200 V 0.75 mm² : 1200 V – 1.00 mm² : 1200 V 1.50 mm² : 2500 V – 2.50 mm² : 2500 V |
| FLAME RETARDANT TEST |
|---|
| IEC 60332-1-2 |
| VDE 0482-332-1-2 |
| EN 60332-1-2 |
