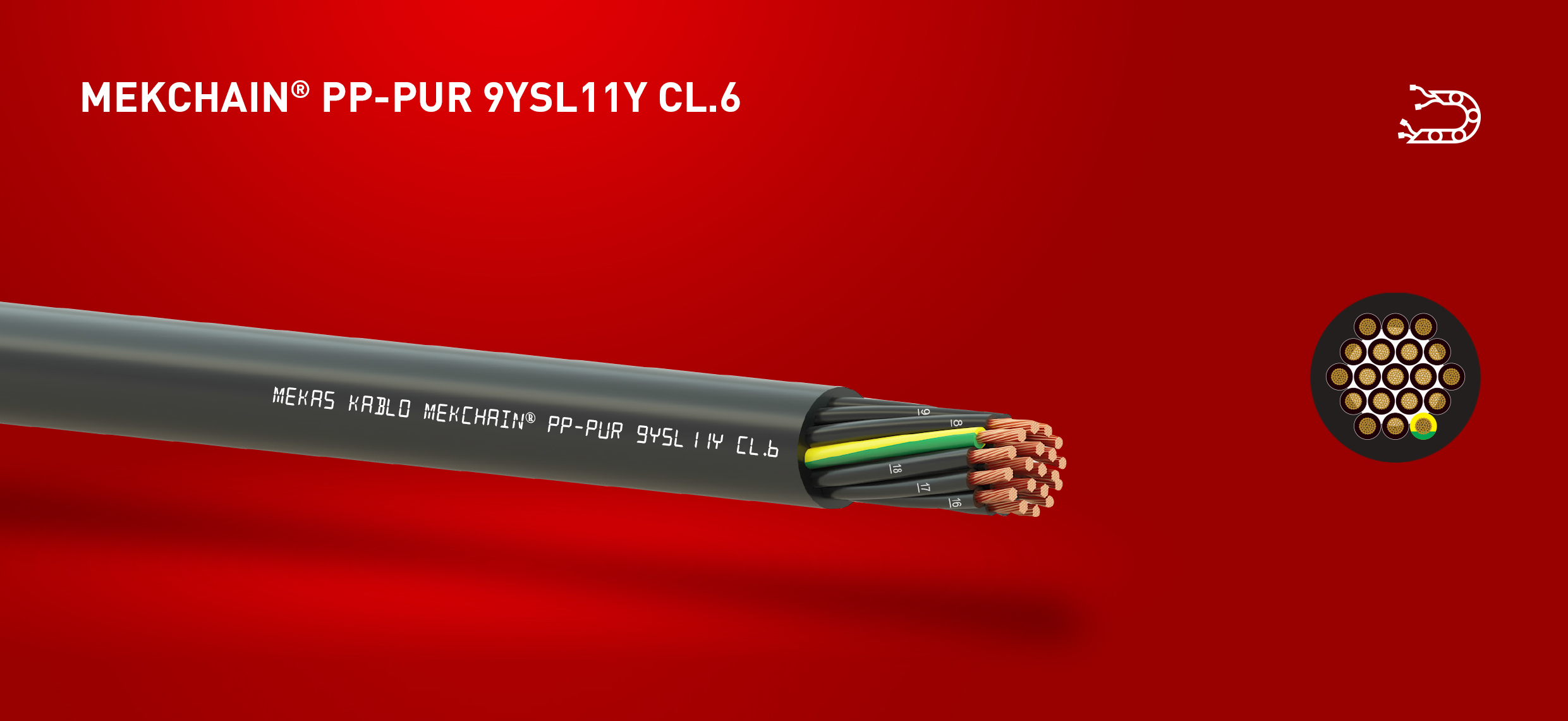

PP-PUR 9YSL11Y CL-6
APPLICATIONS
MEKCHAIN® PP-PUR are installed there, where the extreme requirements for the cables are necessary. The selected materials and lay-up technique permit these high flexible cables for permanent application in drag chains for long distances, high and low speed of movements. These high flexible PVC control cables are suitable for shift- and bending stresses in machines and machine tool constructions. These are installed in dry, moist rooms and in open air with free movement without tensile stress or forced movements. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.)with free movement without tensile stress or forced movements. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.)
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Very Flex Stranded Copper Wire Class 6 Unilay with short pitch length |
| Insulation | special PP |
| Insulation Colours | White Number Coded on Black + Yellow/Green |
| Stranding | Cores Twisted In Layers |
| Outer Sheath | PUR RAL 9005 especially resistant against fatigue strength, extruded as filler with pressure |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | Flexing -15ºC + 80ºC / Fixed -30ºC +80ºC |
| Bending Radius ( min.) | Flexing 7,5 x D / Fixed 4 x D |
| Working Voltage | 300/500 V |
| Insulation Resistance | min. 100 MΩ x km |
| Test Voltage | 3000 V |
Properties
• Low adhesion
• ozon- and uv-resistant
• High property of alternating bending strength
• High resistant to mechanical strain
• Long life durabilities due to low friction-resistancen
• Better chemical resistance
• High stability
• Higher economical solution
• Reduced Ø, results low weight of moving materials
• The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
• PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
• Oil resistance to DIN VDE 0473-811-404 / DIN EN 60811-404
