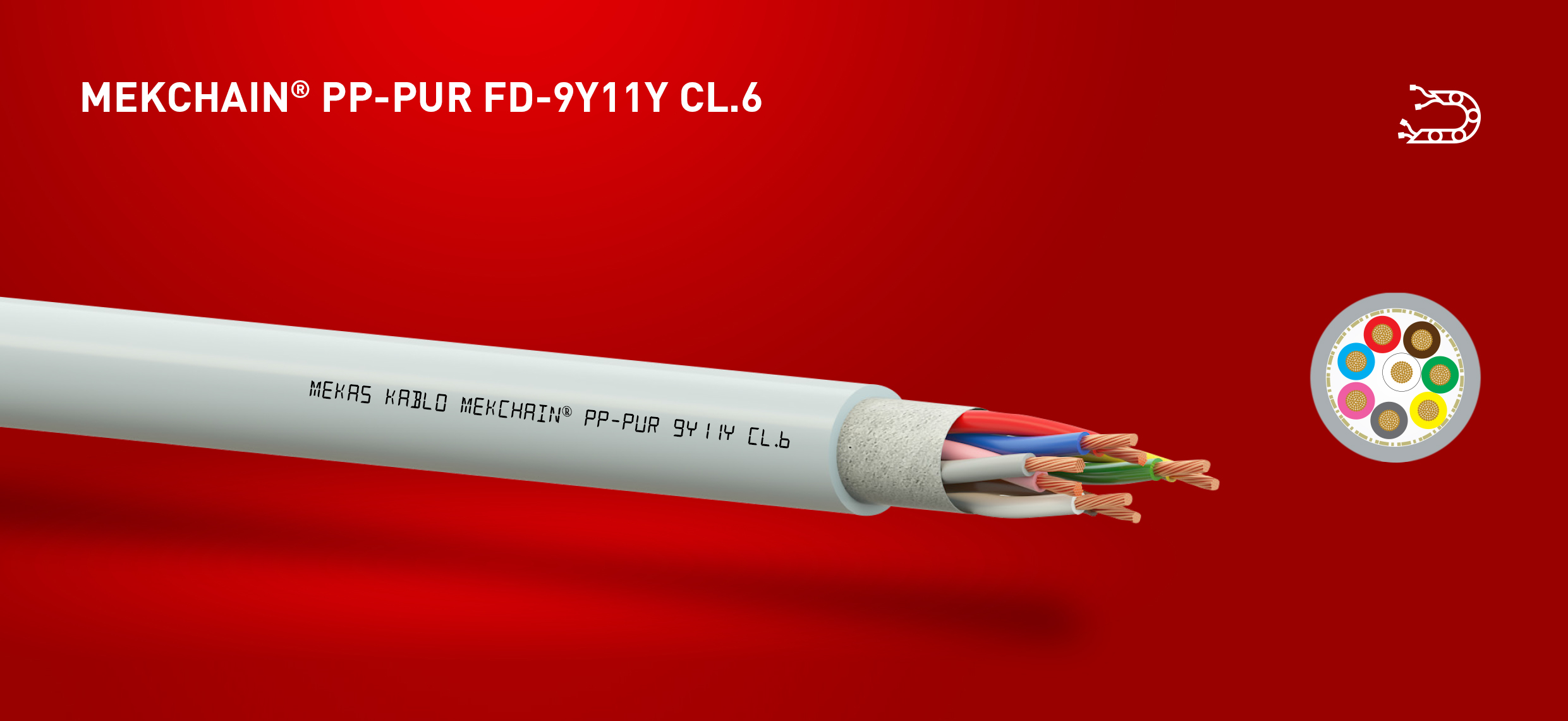

PP-PUR FD-9Y11Y CL-6
APPLICATIONS
Perfect for use with cable trays. This highly flexible PUR control cable is ideal for use wherever frequent high flexing motion is required, e. g. in robotics or all moving parts. The long working life of this cable makes it both efficient and economic. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.)
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Very Flex Stranded Copper Wire Class 6 extra fine wire conductors, to DIN VDE 0295 cl.6, cl.6, col. 4 and 5 and IEC 60228 cl.6 |
| Insulation | PP |
| Insulation Colours | DIN 47100 Color Coding |
| Stranding | Cores Twisted In Layers |
| Seperator | Nonwowen Tape |
| Outer Sheath | PUR RAL 7001 TMPU to DIN VDE 0207-363-10-2/ DIN EN 50363-10-2 |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | Flexing -5ºC + 90ºC / Fixed -40ºC +70ºC |
| Bending Radius ( min.) | Flexing 5 x D / Fixed 3 x D |
| Working Voltage | 350 V |
| Insulation Resistance | min. 20 MΩ x km |
| Test Voltage | 1500 V |
Properties
• High flexibility at low temperature, high abrasion resistance, break and cut-resistant, tear resistant
• Resistant to UV-radiation, Oxygen, Ozone, Hydrolyse, Oil.
• Conditional resistant to
• Microbes, Hydraulic liquidity, Alkalis, Lye.
• The PUR outer sheath is extremely robust with high tear, abrasion and oil-resistance.
• Adhesion-low
• The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
