APPLICATIONS

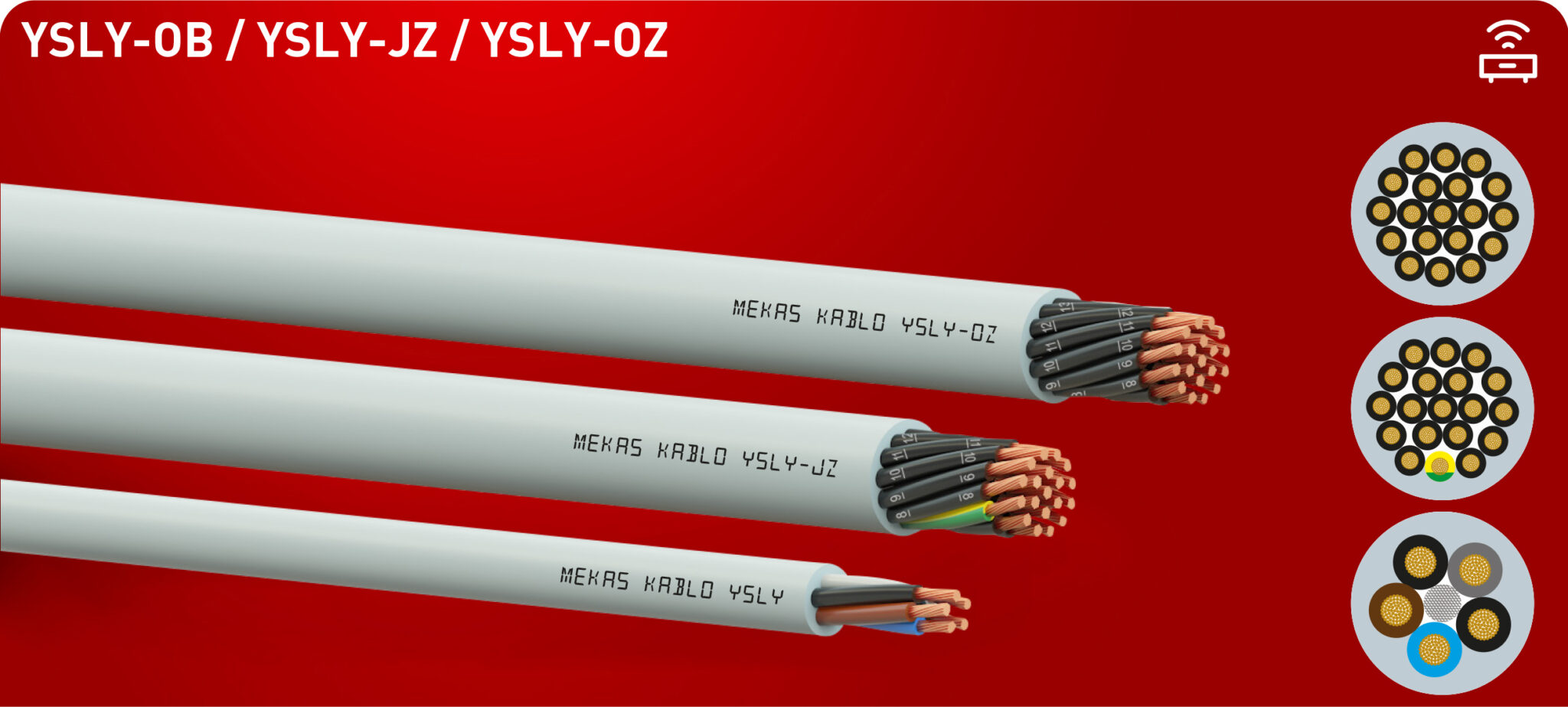

It is a PVC insulated and sheathed, flexible control cable with numbered cores. It is used in dry or humid places, in environments where there is no mechanical strain. Thanks to its flexible and thin structures, it is used in mobile facilities and narrow space applications. It is used for measurement and control in electronic control systems, production and assembly lines, engineering projects.
YSLY-OZ: cores are black and white number coded
YSLY-JZ: with earth protection core (yellow / green), black core with white number code
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Stranded Copper Wire Class 5 |
| Insulation | PVC Compound |
| Insulation Color | Black on White Color Number Coded |
| Stranding | Cores Twisted In Layers |
| Outer Sheath | PVC Gray |
| Product Types | YSLY |
| PACKAGING | 500 – 1000 meters |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | – 30 ºC + 70 ºC |
| Bending Radius (min.) | 10 x D |
| Working Voltage | 300 / 500 V |
| Insulation Resistance | >200 MΩxkm |
| Conductor Resistance | 0.22 mm² : 96 Ω/km 0.50 mm² : 39 Ω/km 0.75 mm² : 26 Ω/km 1.00 mm² : 19.50 Ω / km 1.50 mm² : 13.30 Ω / km 2.50 mm² : 7.98 Ω / km |
| Test Voltage | 0.22 mm² : 1200 V 0.50 mm² : 1200 V 0.75 mm² : 1200 V 1.00 mm² : 1200 V 1.50 mm² : 2500 V 2.50 mm² : 2500 V |
| FLAME RETARDANT TEST |
|---|
| IEC 60332-1-2 |
| VDE 0482-332-1-2 |
| EN 60332-1-2 |
