APPLICATIONS
These screened cables are used as signal transmission cables for indoor applications. These can be easily used with their flexible construction in narrow applications like electronic control systems of computer or audio systems or communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. Screening protects the cable from the outer electrical effects. These cables have HFFR material in their construction and These don’t burn easily and if these do the flames go off by themselves. These have low smoke density and These don’t emit poisonous and corrosive gases during the fire. These used in buildings where there are important goods or human population.
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Stranded Copper Wire Class 5 |
| Insulation | HFFR Compound |
| Insulation Color | DIN 47100 Color Coded |
| Stranding | Cores Twisted In Layers |
| Screen | Tinned Copper Wires Braid |
| Outer Sheath | HFFR Gray |

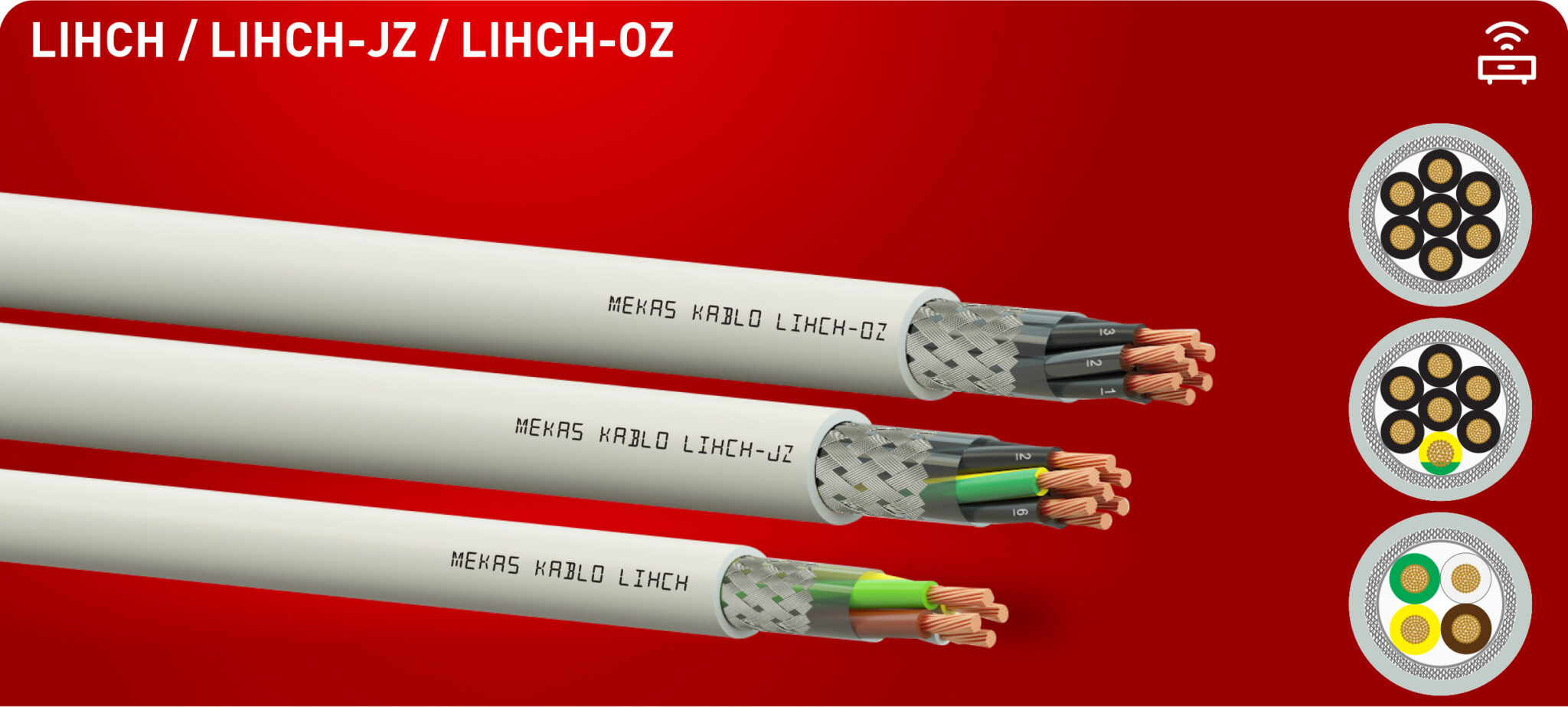

| Product Types | LIHCH / LIHCH-TP |
| PACKAGING | 500 – 1000 meters |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | – 30 ºC + 70 ºC |
| Bending Radius (min.) | 10 x D |
| Working Voltage | 300 / 500 V |
| Insulation Resistance | >200 MΩxkm |
| Conductor Resistance | 0.22 mm² : 96 Ω/km 0.50 mm² : 39 Ω/km 0.75 mm² : 26 Ω/km 1.00 mm² : 19.50 Ω / km 1.50 mm² : 13.30 Ω / km 2.50 mm² : 7.98 Ω / km |
| Test Voltage | 0.22 mm² : 1200 V 0.50 mm² : 1200 V 0.75 mm² : 1200 V 1.00 mm² : 1200 V 1.50 mm² : 2500 V 2.50 mm² : 2500 V |
| FLAME RETARDANT TEST |
|---|
| IEC 60332-1-2 |
| VDE 0482-332-1-2 |
| EN 60332-1-2 |
| SMOKE DENSITY TEST |
|---|
| IEC 61034-2 |
| VDE 0482-1034-2 |
| EN 61034-2 |
| CORROSIVE GAS TEST |
|---|
| IEC 60754-2 |
| VDE 0482-754-2 |
| EN 60754-2 |
