APPLICATIONS
This PVC (screened) cables are used in industrial applications for signal transmission. These can be easily used with their flexible construction in narrow applications like electronic control systems of computer or audio systems or the communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. Screening protects the cable from the outer electrical effects.

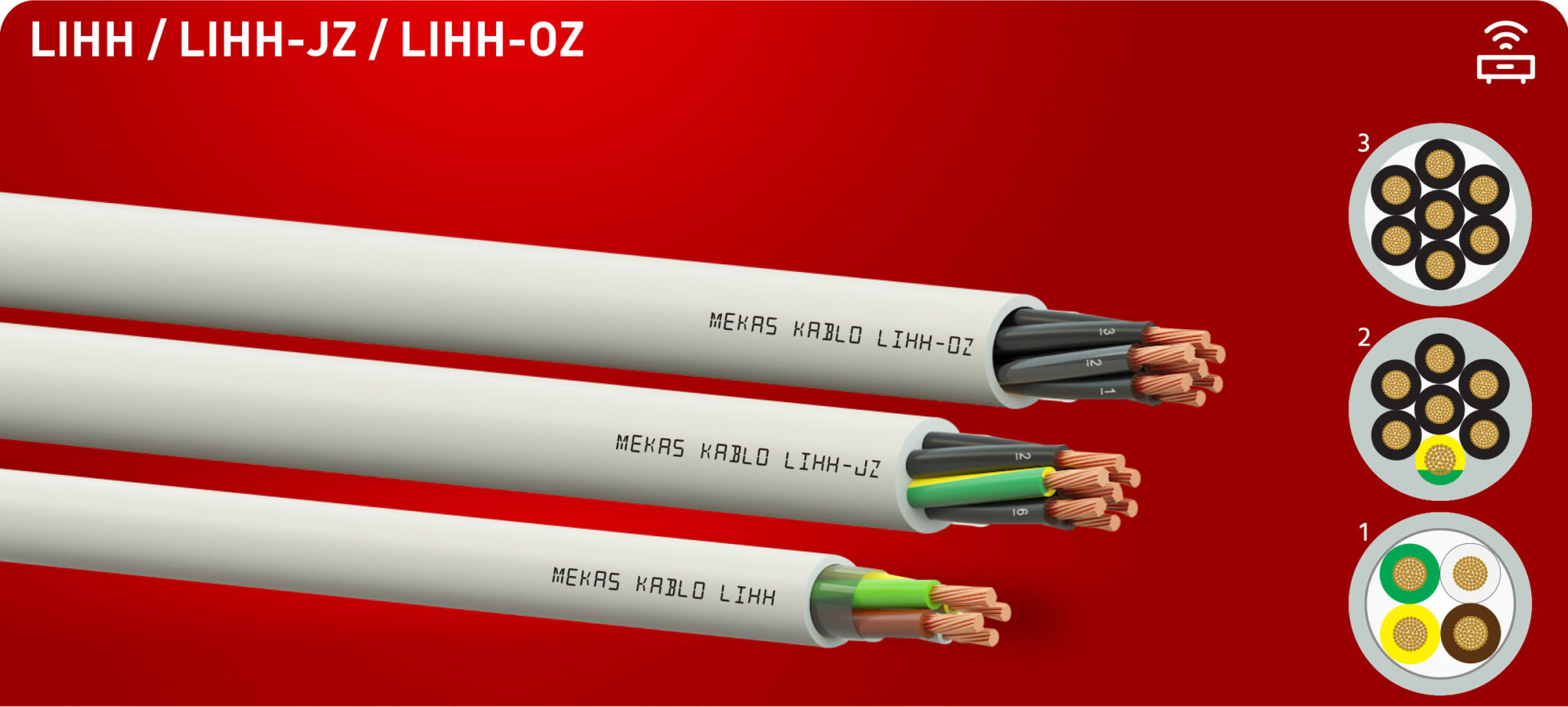

| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Stranded Copper Wire Class 5 |
| Insulation | HFFR Compound |
| Insulation Color | DIN 47100 Color Coded |
| Stranding | Cores Twisted In Layers |
| Outer Sheath | HFFR Gray |
| Product Types | LIHH / LIHH-TP |
| PACKAGING | 500 – 1000 meters |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | – 30 ºC + 70 ºC |
| Bending Radius (min.) | 10 x D |
| Working Voltage | 300 / 500 V |
| Insulation Resistance | >200 MΩxkm |
| Conductor Resistance | 0.22 mm² : 96 Ω/km 0.50 mm² : 39 Ω/km 0.75 mm² : 26 Ω/km 1.00 mm² : 19.50 Ω / km 1.50 mm² : 13.30 Ω / km 2.50 mm² : 7.98 Ω / km |
| Test Voltage | 0.22 mm² : 1200 V 0.50 mm² : 1200 V 0.75 mm² : 1200 V 1.00 mm² : 1200 V 1.50 mm² : 2500 V 2.50 mm² : 2500 V |
| FLAME RETARDANT TEST |
|---|
| IEC 60332-1-2 |
| VDE 0482-332-1-2 |
| EN 60332-1-2 |
| SMOKE DENSITY TEST |
|---|
| IEC 61034-2 |
| VDE 0482-1034-2 |
| EN 61034-2 |
| CORROSIVE GAS TEST |
|---|
| IEC 60754-2 |
| VDE 0482-754-2 |
| EN 60754-2 |
