APPLICATIONS
These double screened cables are used as signal transmission cables in industrial applications. These can be easily used with their flexible construction in narrow applications like electronic control systems of computer or audio systems or the communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. These used for indoor applications. Screening protects the cable from the outer electrical effects.
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Stranded Copper Wire Class 5 |
| Insulation | PVC Compound |
| Insulation Color | DIN 47100 Color Coded |
| Stranding | Cores Twisted In Layers |
| Seperator | Pes Tape |
| Screen | Tinned Copper Wires Braid - Al-PES Tape %100 |
| Outer Sheath | PVC Gray |

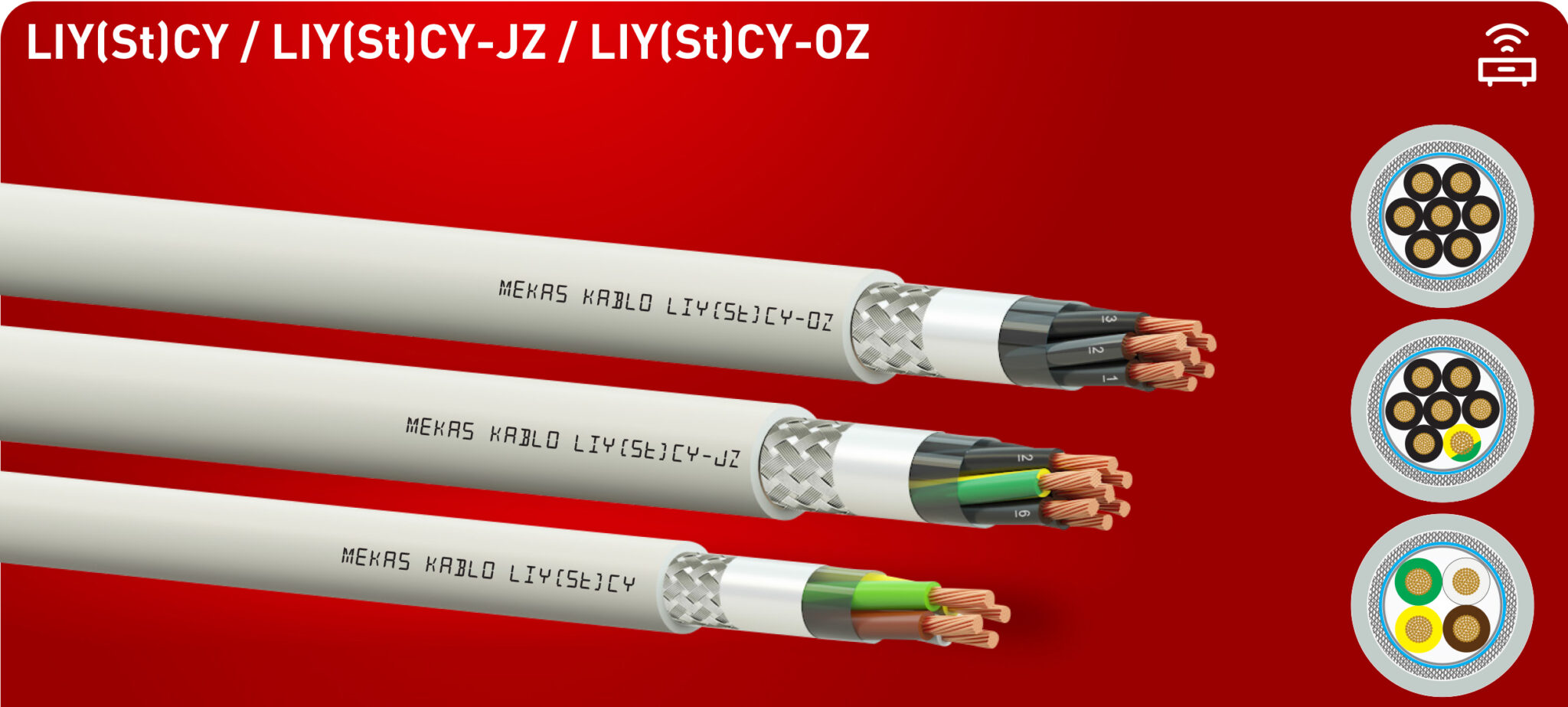

| Product Types | LIY(St)CY / LIY(St)CY-TP |
| PACKAGING | 500 – 1000 meters |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | – 30 ºC + 70 ºC |
| Bending Radius (min.) | 10 x D |
| Working Voltage | 300 / 500 V |
| Insulation Resistance | >200 MΩxkm |
| Conductor Resistance | 0.22 mm² : 96 Ω/km 0.50 mm² : 39 Ω/km 0.75 mm² : 26 Ω/km 1.00 mm² : 19.50 Ω / km 1.50 mm² : 13.30 Ω / km 2.50 mm² : 7.98 Ω / km |
| Test Voltage | 0.22 mm² : 1200 V 0.50 mm² : 1200 V 0.75 mm² : 1200 V 1.00 mm² : 1200 V 1.50 mm² : 2500 V 2.50 mm² : 2500 V |
| FLAME RETARDANT TEST |
|---|
| IEC 60332-1-2 |
| VDE 0482-332-1-2 |
| EN 60332-1-2 |
