APPLICATIONS
It is used in places where there are electromagnetic mixtures and interferences, in instrument and control engineering, in fuel pumps, in machine production for measuring and control purposes, in assembly and production lines, in dry and humid environments, in places where mechanical stress is required, and where mechanical stress is medium.

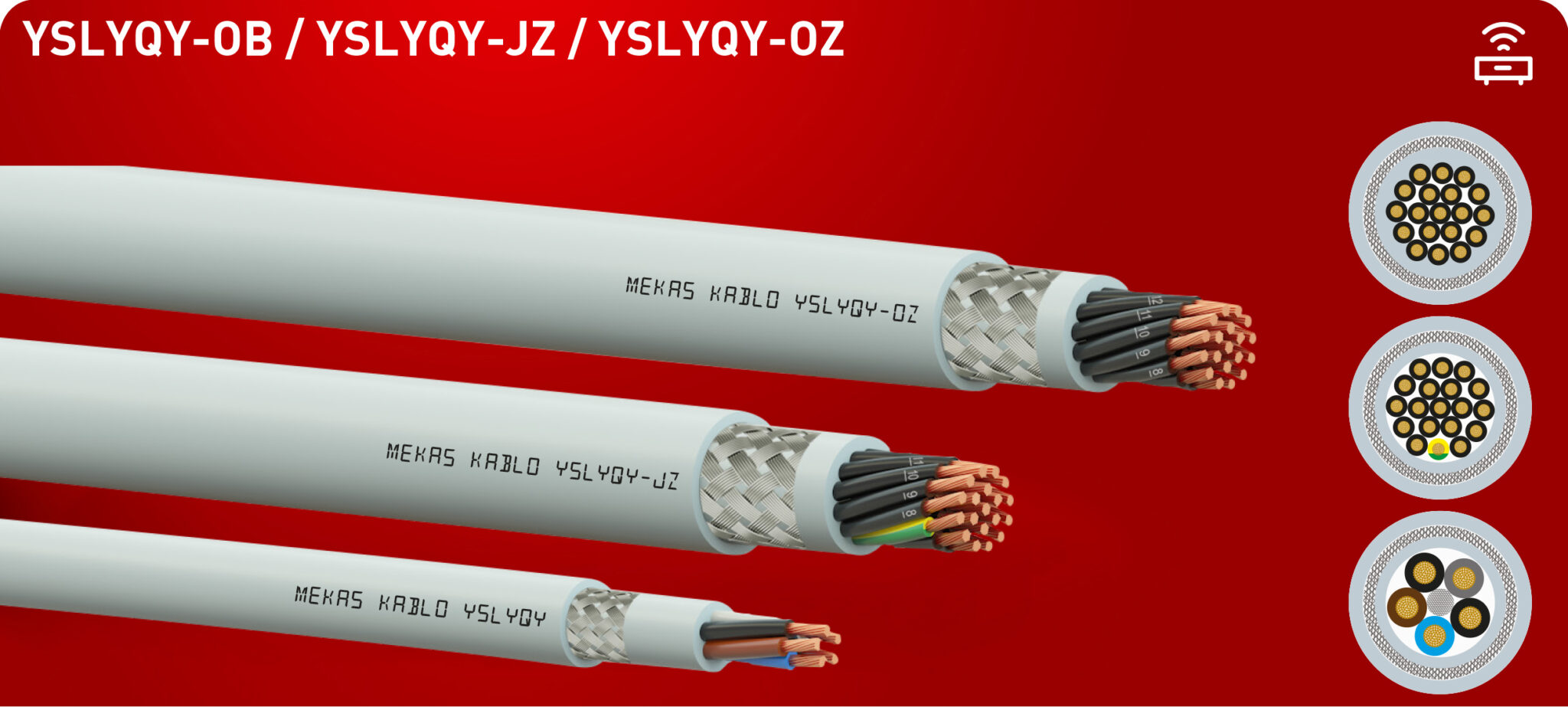

| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Class 5 Stranded Electrolytic Annealed Copper |
| Insulation | EN 50363-3 PVC Compound |
| Insulation Color | DIN VDE 0293; TS EN 50334 or Black Insulator, White Number Coded |
| Stranding | Twisting in Layers at Appropriate Steps |
| Inner Cover | EN 50363-4-1 PVC Compound |
| Screen | Galvanized Steel Wire Mesh |
| Outer Sheath | EN 50363-3 PVC Compound |
| Sheath Color | RAL 7001 Gray |
| PACKAGING | 500 – 1000 meters |
| ELECTRICAL PARAMETERS | |
|---|---|
| Insulation Resistance | 20 MΩxkm |
| Working Voltage | 300V / 500V |
| Test Voltage | 2000V |
| Bending Radius | 10x Cable Ø |
| Working Temperature | – 5ºC+70ºC Moving ~ 30ºC+70ºC Fixed |
| Flame Retardancy Test | IEC 60332-1-2 DIN EN 60332-1-2 EN 60332-1-2 |
| FLAME RETARDANT TEST |
|---|
| IEC 60332-1-2 |
| VDE 0482-332-1-2 |
| EN 60332-1-2 |
