APPLICATIONS
The ideal cable for use in cable trays. This high flexible cable is ideal for all areas requiring a high and fast flexing cable including the machine industries, robotics and all areas of highly mobile machine parts. The long working life offers a secure performance as well as economy. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.)

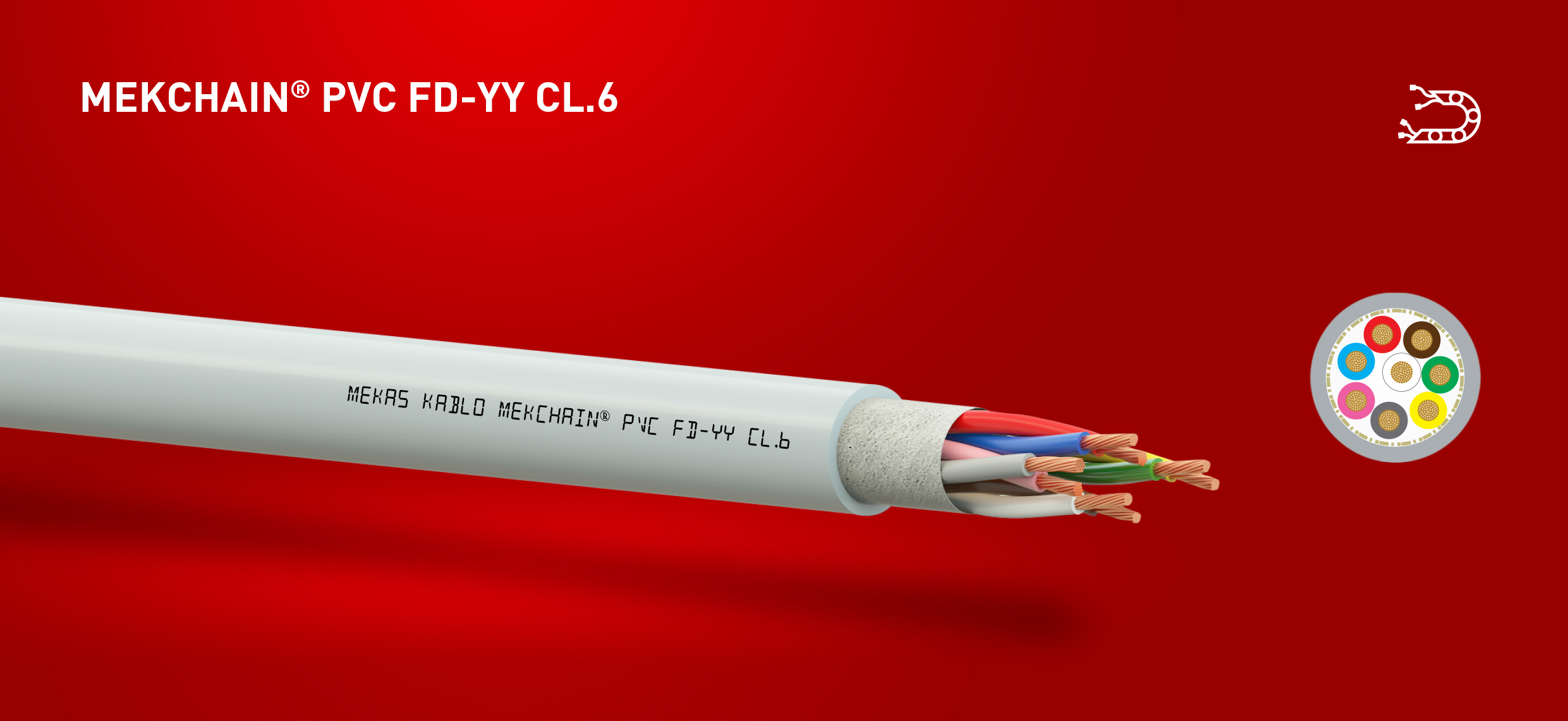

| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Highly Flexible Stranded Copper Wire Class 6 extra fine wire conductors DIN VDE 0295 class.6 |
| Insulation | Special PVC compound type TI2 DIN VDE 0207-363-3 / DIN EN 50363-3 |
| Insulation Color | DIN 47100 Color Coding |
| Stranding | Twisting in Layers |
| Separator | Nonwoven Tape |
| Outer Sheath | PVC RAL 7001 compound type TM2 DIN VDE 0207-363-4-1/DIN EN 50363-4-1 |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | Moving -5ºC + 70ºC / Fixed -40ºC +70ºC |
| Bending Radius (min.) | Moving 5 x D / Fixed 3 x D |
| Working Voltage | 350V |
| Insulation Resistance | min. 20 MΩ x km |
| Test Voltage | 1500 V |
Properties
• Highly resistant to oils Chemical Resistance
• Low adhesion
• The materials used in production are cadmium-free, silicone-free and do not contain substances harmful to the wetting properties of polishes.
Tests
• PVC is self-extinguishing and flame retardant. According to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent to DIN VDE 0472 part 804 test method B)
