These shielded and PVC insulated cables are used as signal transmission cables in industrial applications. These can be easily used with their flexible construction in narrow applications like electronic control systems of computer or audio systems or the communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. These used for indoor applications. Screening protects the cable from the outer electrical effects.
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Stranded Copper Wire Class 5 |
| Insulation | PVC Compaund |
| Insulation Colours | DIN 47100 Colors & Number Code |
| Stranding | Pairwise pairs in layers |
| Seperator | Pes Tape |
| Screen | Drain Wire – AL-PES Band %100 |
| Outer Sheath | PVC Grey |

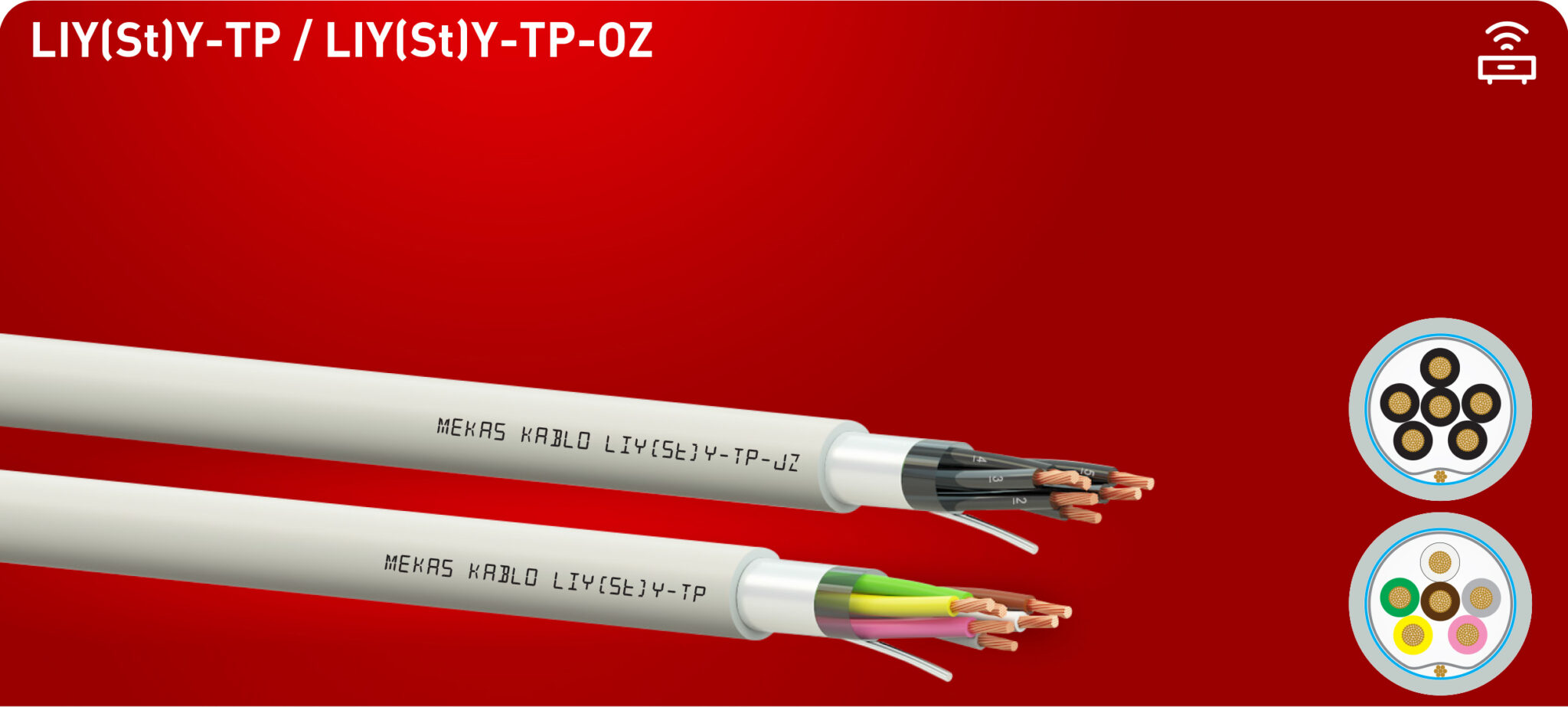

| Product Types | LIY(St)Y-TP |
| Packing | 500 – 1000 mt |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | – 30 ºC + 70 ºC |
| Bending Radius ( min.) | 10 x D |
| Working Voltage | 300 / 500 V |
| Insulation Resistance | >200 MΩxkm |
| Conductor Resistance | 0,22 mm² : 96 Ω / km 0,50 mm² : 39 Ω / km 0,75 mm² : 26 Ω / km 1,00 mm² : 19,50 Ω / km 1,50 mm² : 13,30 Ω / km 2,50 mm² : 7,98 Ω / km |
| Test Voltage | 0,22 mm² : 1200 V 0,50 mm² : 1200 V 0,75 mm² : 1200 V 1,00 mm² : 1200 V 1,50 mm² : 2500 V 2,50 mm² : 2500 V |
