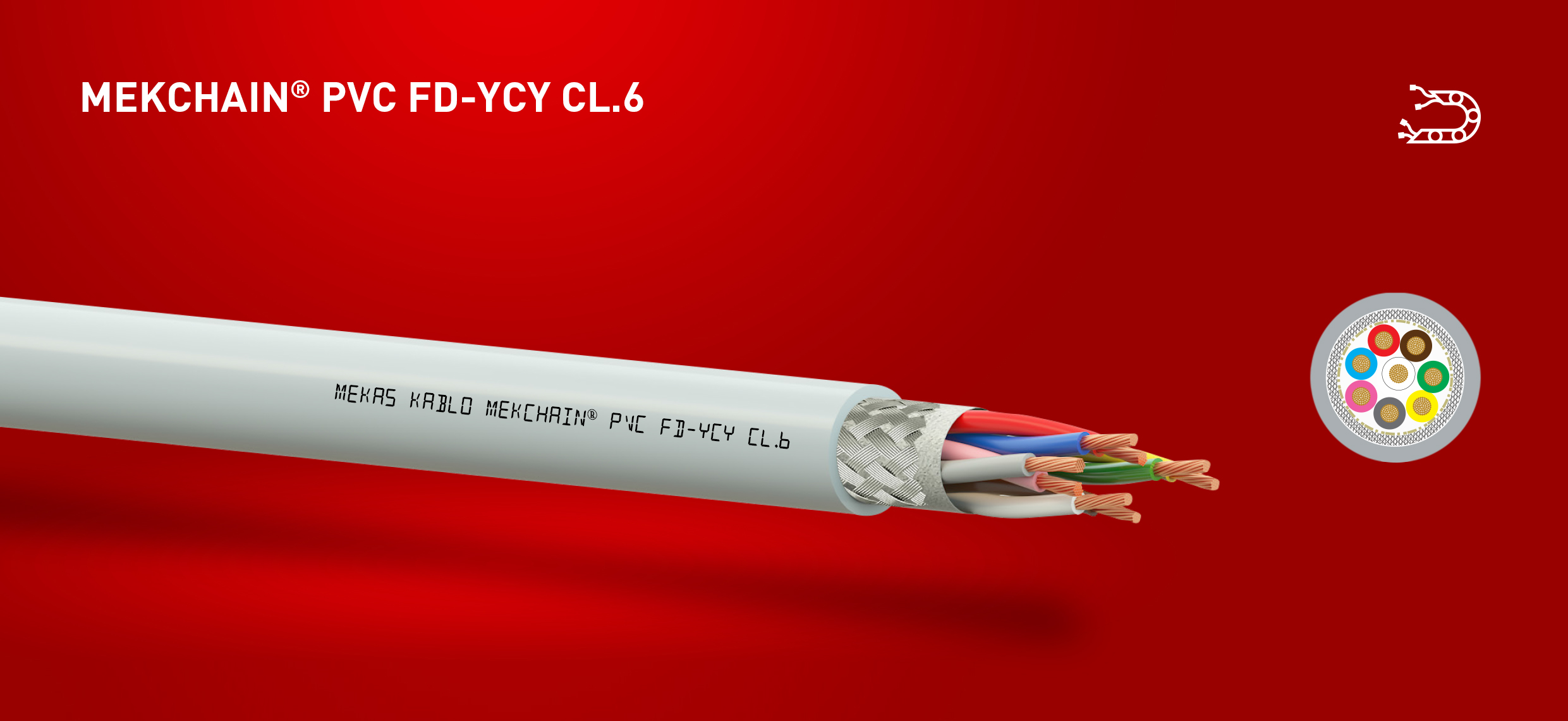

PVC FD-YCY CL-6
APPLICATIONS
The ideal cable for use in cable trays. This high flexible cable is ideal for all areas requiring a high and fast flexing cable including the machine industries, robotics and all areas of highly mobile machine parts. The long working life offers a secure performance as well as economy. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.)
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Very Flex Stranded Copper Wire Class 6 extra fine wire conductors, to DIN VDE 0295 cl.6 |
| Insulation | Special PVC compound type TI2 DIN VDE 0207-363-3 / DIN EN 50363-3 |
| Insulation Colours | DIN 47100 Color Coding |
| Stranding | Cores Twisted In Layers |
| Seperator | Nonwowen Tape |
| Screen | Tinned Copper Wire Braid %85 Coverage |
| Outer Sheath | PVC RAL 7001 compound type TM2 DIN VDE 0207-363-4-1/DIN EN 50363-4-1 |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | Flexing -5ºC + 70ºC / Fixed -40ºC +70ºC |
| Bending Radius ( min.) | Flexing 7,5 x D / Fixed 4 x D |
| Working Voltage | 350 V |
| Insulation Resistance | min. 20 MΩ x km |
| Test Voltage | 1500 V |
Properties
• Extensively oil resistant Chemical Resistance
• Adhesion-low
• The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Tests
• PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
