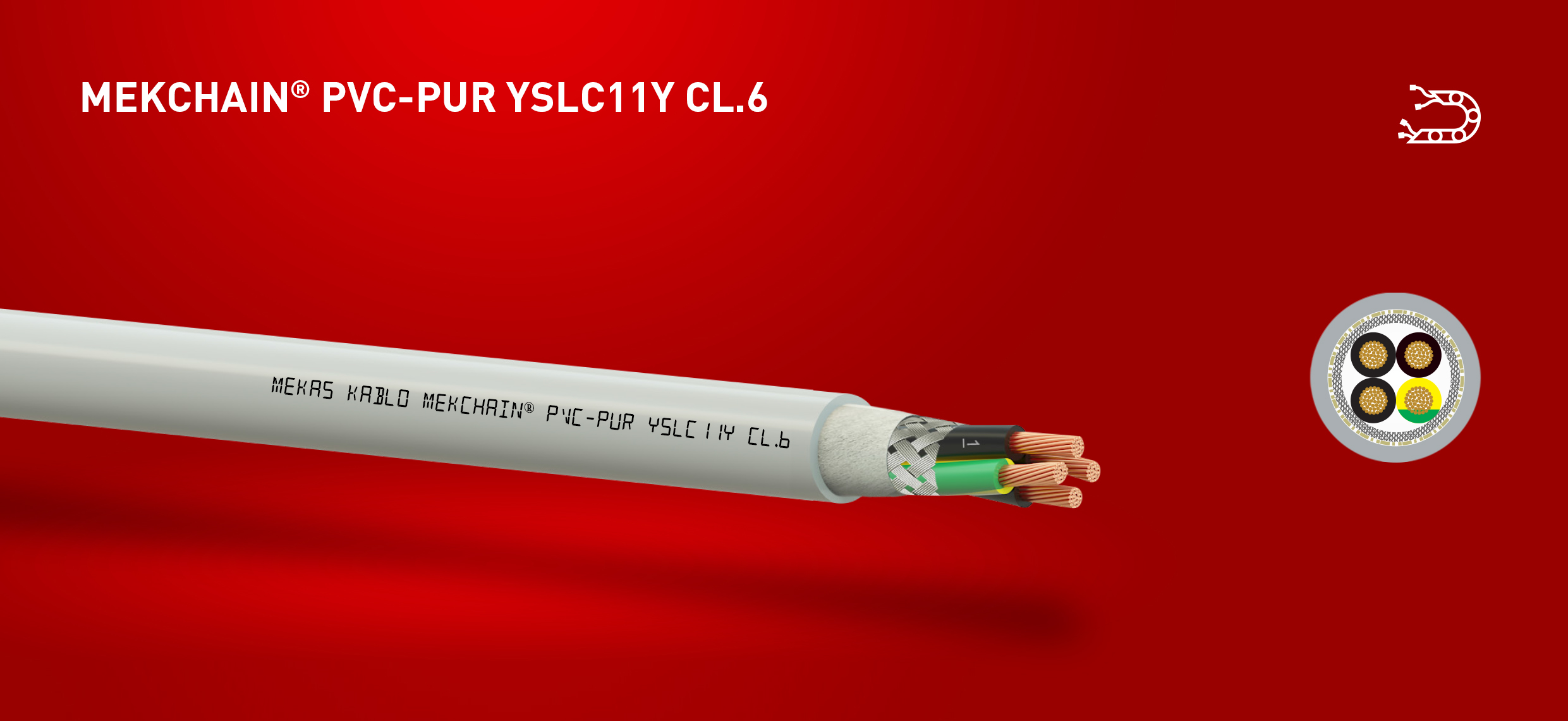

PVC-PUR YSLC11Y CL-6

APPLICATIONS
This cable is a highly robust and tare and abrasion resistant cable with excellent resistance properties to mineral oils and cooling fluids, thus making it an ideal choice for installation in most types of industrial machinery as well as in steel works and rolling mills, etc. in fact, wherever you may need a cable to cope with especially critical situations. Easy to install, thanks to its high degree of flexibility. Its high abrasion resistance and good flexing ability make it quick and easy to
install and, with its low bending radius, ideal for use with cable trays. This screened cable is ideal for use in data signal transmission free from interferences for measurement and control engineering technology. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.)
CABLE CONSTRUCTION | |
---|---|
Conductor | Very Flex Stranded Copper Wire Class 6 bunch stranded to DIN VDE 0295 cl.6, col.4, BS 6360 cl.6 and IEC 60228 cl.6 |
Insulation | PVC Oil Resistant TI2 in adapted to DIN VDE 0207-363-3 / DIN EN 50363-3, for better sliding abilities |
Insulation Colours | White Number Coded on Black + Yellow/Green Core identification to DIN VDE 0293 |
Stranding | Cores Twisted In Layers |
Screen | Tinned Copper Wire Braid + Nonwowen PP |
Outer Sheath | PUR RAL 7001 Outer sheath of special full-polyurethane to DIN VDE 0207-363-10-2/ DIN EN 50363-10-2 |

ELECTRICAL PARAMETERS | |
---|---|
Working Temperature | Flexing -20ºC + 80ºC / Fixed -40ºC +80ºC |
Bending Radius ( min.) | Flexing 10 x D / Fixed 5 x D |
Working Voltage | 300/500 V |
Insulation Resistance | min. 20 MΩ x km |
Test Voltage | 4000 V |
Properties
• Suitable for outdoor lying and resistant to UV-radiation, oxygen, ozone and hydrolysis.
Conditionally resistant to microbes
• Adhesion-low
• The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
