APPLICATIONS
It is used in instrument and control engineering, industrial electronics, measurement and control purposes in machine production, assembly and production lines, in places where chemical resistance is required in wet, dry and humid environments where mechanical stress is low.

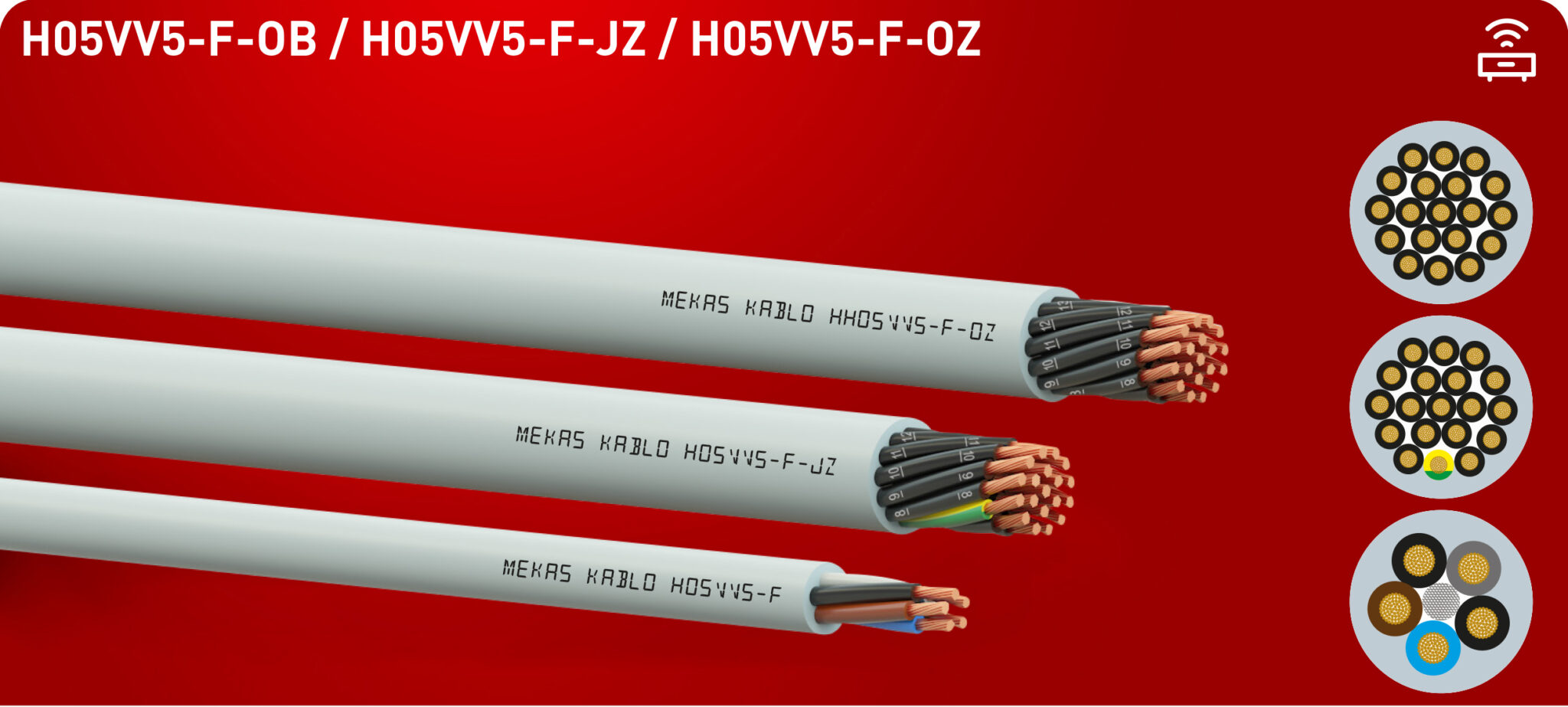

| CABLE CONSTRUCTION | |
|---|---|
| Conductor | IEC 60228 DIN EN 60228 EN 60228 Class 5 Stranded Electrolytic Annealed Copper |
| Insulation | EN 50363-3 PVC Compound |
| Insulation Color | DIN VDE 0293; TS EN 50334 or Black Insulator, White Number Coded |
| Stranding | Twisting in Layers at Appropriate Steps |
| Outer Sheath | EN 50363-4-1 TM5 Oil Resistant PVC Compound |
| Cover Color | RAL 7001 Gray |
| PACKAGING | 500 – 1000 meters |
| ELECTRICAL PARAMETERS | |
|---|---|
| Cycle Resistance | 0.5mm² 39Ω/km -0.75mm² 26Ω/km – 1.0mm² 19.5Ω/km – 1.5mm² 13.3Ω/km – 2.5mm² 7.98Ω/km |
| Insulation Resistance | 20MΩxkm |
| Current Carrying Capacity | 0.5mm² 6.0 A – 0.75mm² 13A – 1.0mm² 16A – 1.5mm² 20A – 2.5mm² 25A |
| Working Voltage | 300V / 500V |
| Test Voltage | 2000V |
| Bending Radius | 7.5x Cable Ø |
| Working Temperature | – 5ºC+70ºC Mobile ~ 30ºC+70ºC Fixed |
| Flame Retardancy Test | IEC 60332-1-2 DIN EN 60332-1-2 EN 60332-1-2 |
| Chemical Resistance | IEC 60811-404 |
| FLAME RETARDANT TEST |
|---|
| IEC 60332-1-2 |
| VDE 0482-332-1-2 |
| EN 60332-1-2 |
