These PVC sheathed cables(screened) are used in industrial applications for signal transmission. These can be easily used with their flexible construction in narrow applications like electronic control systems of computer or audio systems or the communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. Screening protects the cable against the outer electrical effects.
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Stranded Copper Wire Class 5 |
| Insulation | PVC Compaund |
| Insulation Colours | DIN 47100 Colors & Number Code |
| Stranding | Cores Twisted In Layers |
| Seperator | Pes Tape |
| Screen | Pairwise pairs in layers |
| Outer Sheath | PVC Grey |

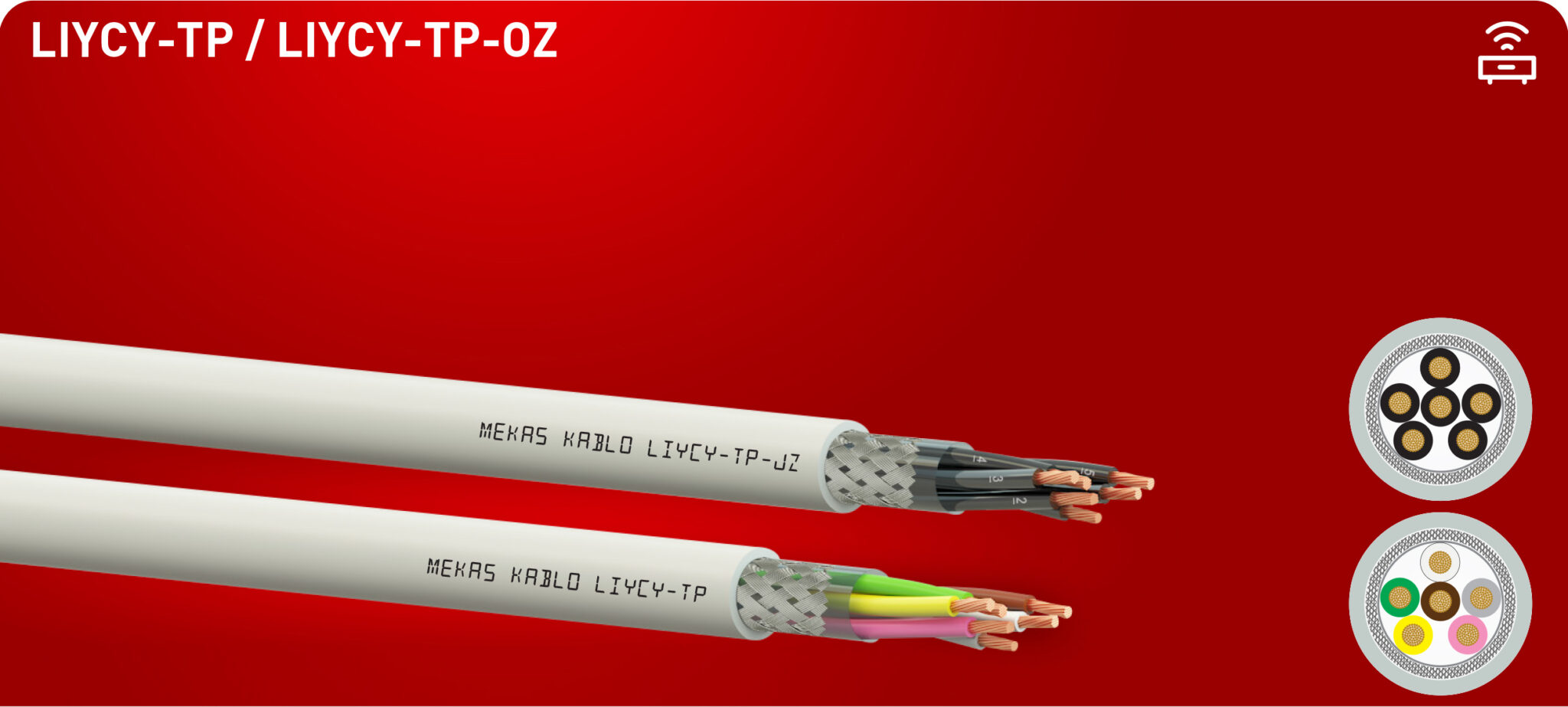

| Product Types | LIYCY-TP |
| Packing | 500 – 1000 mt |
| ELECTRICAL PARAMETERS | |
|---|---|
| Working Temperature | – 30 ºC + 70 ºC |
| Bending Radius ( min.) | 10 x D |
| Working Voltage | 300 / 500 V |
| Insulation Resistance | >200 MΩxkm |
| Conductor Resistance | 0,22 mm² : 96 Ω / km 0,50 mm² : 39 Ω / km 0,75 mm² : 26 Ω / km 1,00 mm² : 19,50 Ω / km 1,50 mm² : 13,30 Ω / km 2,50 mm² : 7,98 Ω / km |
| Test Voltage | 0,22 mm² : 1200 V 0,50 mm² : 1200 V 0,75 mm² : 1200 V 1,00 mm² : 1200 V 1,50 mm² : 2500 V 2,50 mm² : 2500 V |
